Point cloud to BIM modeling Services

We work on Point cloud to BIM models daily, Everyday  |  "Scan to BIM services"

Point cloud to Revit modeling services

Our Point cloud BIM Services

In Building Information Modeling (BIM), we are specialized in Point cloud to BIM and Scan to BIM modeling services and have successfully completed 1200+ Scan to BIM Revit, and MEP projects accurately by using Autodesk software like Revit, AutoCAD, Inventor, Recap, etc. We have years of experience with all type Level of detail and generated accurate 3D BIM models from Point cloud data with LOD100 to LOD500 including high detailed Revit MEP for our clients, mainly coming from the construction, architectural & engineering industry for their refurbishment, renovation, reconstruction or for gathering information.

Our Bim modeling experts are trained internally in our office and are highly capable to convert any point cloud to Revit 3D model accurately and any data related to laser survey into great and rich data after scanning, and they do it with the help of Autodesk software. Our experience includes working with all types of point cloud data that is collected using 3D laser scanner machines including Faro scannersTrimble, Navvis, MatterportLeica, Geoslam, and many more. We are able to get and compile millions of data points, and our specialization lies in that, we also get relevant images from the site to give rise to the creation of 3D models which will not be just normal Bim models, but there will be detailed Bim models for complex projects’ expansion,  phased retrofitting projects and restoration of heritage buildings.

In addition to general contractors and construction management firms, we offer our Point cloud to BIM modeling service to laser scanning companies, surveyors, Revit experts, property owners, architectural design firms, Drafters, Engineers, etc.

We have expertise in creating parametric 3D BIM and 2D CAD models that capture architectural, structural, and MEP features for hotel, educational, and commercial project

We are aware of the importance of a well-executed strategy for any Refurbishment, Reconstruction, or Renovation Project. All data-driven choices such as planning, estimation, feasibility analysis, and so on are dependent on the correctness of the as-built model derived from a Point Cloud Scan.

We understand the critical role that data accuracy plays in producing reliable 3D models from Point cloud data. Our team of skilled professionals is trained and proficient in processing data from various 3D laser scanners, ensuring that the resulting 3D models are precise and reflect the intended design or environment.


What kinds of Formats do we offer when it comes to Point Cloud to 3D conversion?

Point cloud to BIM converstion format of 3D model.jpg

Working in the Scan to BIM  3D modeling sector, we are well aware that most clients prefer 3D models in another format for purposes such as renovation, simulations, property space testing, machine modeling, animations, information, dimensions, rendering,  visualizations, etc and we are strongly capable of producing Point cloud data (3d laser scanning) to other formats.

such as RVT, DWG, STEP, STP, SAT, IFC, FBX, NWC, SAT, 3DS, STL, DWF, NWD, PLN, PLA, UE4, IGS, IGES, NWD, NWC,  OBJ, and many more.

Software used:- Autodesk Revit, AutoCAD, 3ds Max, Unreal Engine, Recap, Lecia, Archicad, and other CAD (Computer-Aided-Design) tools.

As built drawing for renovation abd BIM modeling Revit.webp

Our Point cloud to BIM modeling process includes creation of 3D Revit elements as follows:-

  Revit Architectural

  • 3D creation of Revit elements like the type of walls, doors, windows, cabinets, lights, Ceiling elements, Bathroom components, kitchen components, tables, chairs, wall elements,  interior elements, etc.

  Revit Structural

  • Includes foundation, framing, steel structure, concrete wall, beams, columns, annotations, truss, joist, etc and we create our own Revit families for our point cloud to BIM project.

  Revit MEP

  • Point cloud to Revit MEP modeling includes accurate Pipe connection, duct, valves, conduits, fittings, cable trays, junction boxes, pipe duct hangers, electrical panels, flex, air terminals, pipe systems, fire sprinklers, etc.

  • MEP additional Revit elements like Switches, outlets, Ac units, heaters, lights, phone jacks, sensors, speakers, data, cable boxes, tanks, ceiling elements, etc.

We have expertise in creating both Revit and AutoCAD files from various laser scan or point cloud data formats generated by regularly used 3D laser scanners such as Faro Scanners, Leica Geosystems, Trimble, and Riegl scanners. We also convert data in a variety of formats like E57, PTX, XYZ, RCS, RCP, Microstation format POD, etc into Revit and CAD. We build an information-rich BIM Ready 3D Model for architectural, structural, and mechanical requirements, as well as clash-free integration.

3d model of hotel with swimming pool in Germany
Scan to 3d model of UK building.
Point cloud to oil gas revit 3d modeling
-09
Building 3d Model

We are aware of what our clients anticipate from us. All that is needed for us to deliver a BIM model with the requisite Autodesk Revit Version like  Revit2020, 2021, 2022, 2023, 2024 and Autocad DWG 2D as-built drawings with proper dimensions, annotations, and layering, among other things, is a Point Cloud data set and a Company Standards template.

The key to our success is the precision with which we execute in scan to BIM and point cloud 3D modeling projects, as well as the time it takes to do so. We enjoy the trust of our partners, the reason our quality services of Scan to Bim have been successful is that they always generate mutual businesses and growth together.

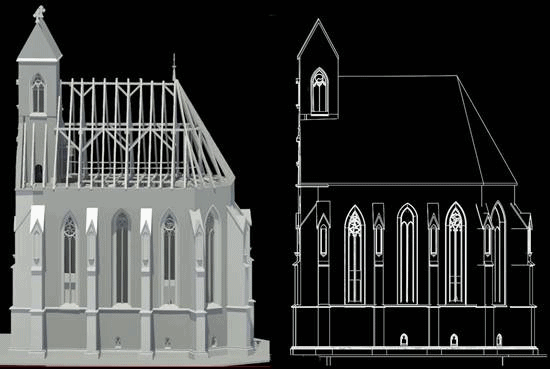

3d church revit model with 2d.jpg
3D Buildng Revit modeling Drawing.jpg
Rvtcad Scan to BIM Revit point cloud revit modeling laser scanning 3D Revit model from Poi

How is Point cloud created using 3D laser scanning techonlogy?

3D laser scanning technique produces point cloud data of any building or structure, which can be used to create high detailed and precise 3D models. Furthermore, a 3D laser scanner is used to carry out the scanning process, and parameters are stored on the scanner's screen interface before the scanning process begins. As the laser scanning rays come in contact with any surface of an object or material, it quickly records and creates a thick layer of millions of digital points with a minimum of ±1mm to 8mm (depending on the 3D laser scanning machine and object distance).

These collections of points create 3D digital cloud images of that particular scanned object or structure, we also call a great collection of these points as point cloud data. As far as the resolution of the scan is concerned, it depends on the number of digital points collected, and it is also true that the more digital points, the greater chances of accuracy. It helps to collect accurate information and generate a good quality 3D model as well as 2D plans, elevation for renovation, 3D visualization, and many other purposes.

How we start 3D modeling Process using Revit

IMPORT Cloud

Import point cloud data into Revit software and start Team collaboration

Create LEVELS

Cut section and create several levels from base to top

Start modeling

Create walls level by level and add other elements like Door, windows, floors, beams, ceilings, roof etc.

QUALITY CHECK

After Compleing, review the final Output three four times.

Deliver model

"After performing QC, we deliver the final product and assume complete responsibility for the BIM model for a year. If any modifications are necessary during this time, we will make them at no additional cost, providing a Guaranteed service."

Pint cloud to Revit Workflow.jpg

 Cost-Effective benefits

We offer cost-effective Point cloud BIM service that achieves low 3D modeling costs (i.e., high productivity) while also providing an industry-leading level of service quality, (For quality check and review please see our completed BIM PROJECTS for references or you can request for sample test at no charge). It is true that early detection of any kind of error saves lots of time and money as well and if we get any error after the delivery which is done a number of times without any further charges for a year except Add-on services.

 Highly Accurate modeling

If you want to have Bim models based on data that will be highly accurate and which will be as-built survey data, then RVTCAD will be the best option for you to choose.



 Better ROI of any project

We have a system of reduced work and more productivity, and this productivity will be much more with time, and it will just lead to better and greater ROI.



 Easily find seamless collaboration

At Rvtcad, We want to take all the clients and our partners with great collaboration and not just clients, but good collaboration takes place among contractors, engineers, architects, designers, and owners as well.



 Enhanced spatial analysis

The precise and deep power of scanning for enhanced visualization of space management is the quality that we provide to all the clients and partners whom we work with to meet their satisfaction and expectation.



 Expandable model building

 When any progress of the project reaches in real-time, then we also get to adopt 3D Bim models which exhibit scalability and expandability to give precise and better analysis through which we create accurate data which comes out as a result of scanning.



Besides all the points that we have mentioned about our services, the best thing is the efficiency and accuracy that we provide for as-built BIM modeling for renovations and expansions, and due to this reason, we have served many clients successfully across the world.

Our
BIM Services
Benefits

Revit-ploy beam.JPG

Point cloud to Revit modeling

What is the difference between "Point cloud to BIM" and "Point cloud to Revit" modeling?

Point cloud to BIM:-

in Short, Point cloud to BIM is the process, where point cloud is obtained through 3D laser scanners like Faro, Navvis, Trimble scanners, etc. BIM(Building Information Modeling) models are digital representations of any structure or building that contain detailed information about the building's geometry, materials, and systems and can be used for maintaining the structure. BIM models can be created in any software like Autocad, Revit, Archicad, 3D max, Sketchup, Tekla, and many other BIM software.

Point cloud to Revit modeling:-

Revit is one of the best BIM software provided by Autodesk. Revit software is most utilized on a much larger scale than other CAD software, especially for point cloud to 3D conversions where we can work on the Architectural, Structural part as well as on MEP(Mechanical, Electrical, and Plumbing) parts. Revit users can use point cloud data to create 3D models, generate floor plans, elevations, and sections, and perform quantity takeoffs. With Point cloud to Revit conversion, you can rest assured that the results will be outstanding in terms of Quality and Accuracy.

In summary,

  • Point cloud to BIM is a process that converts point cloud data into a BIM model, known as a point cloud to BIM services

  • Point cloud to Revit is a specific software application that allows users to create BIM models using point cloud data as a reference.

It is important to note that the Point cloud to BIM and Point cloud to Revit are related but different concepts. Point cloud to BIM is a process that can be done in any software that supports BIM modeling process, whereas Point cloud to Revit is specifically for creating BIM models in Autodesk Revit.
